SH Series Slurry Pump Description:
SH Series Slurry Pumps are metal liner slurry pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design.Their wet end parts in contacting with the slurry are made of latest wear-resistance 27% chrome alloy white iron with high hardness more than 60HRC which has an excellent feature to transport strong abrasive, coarse even sharp particle.
SH Series Slurry Pump Features:
1.Our Pump wet parts are made of wear-resistant high chromium alloy.
2. Our Pump bearing assembly use cylindrical structure, adjusting the space between impeller and front
liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication.
3. The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.
4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.
5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
6.Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage series to meet the delivery for long distance.
SH Series Slurry Pump Performance Chart:
| Pump Model | Allowable Max. Power(kw) | Clear Water Performance | |||||
| Capacity Q | Head H(m) | speed n(r/min) | Max.eff. η% | NPSH (m) | Impeller Dia(mm) | ||
| m3/h | |||||||
| 1.5x1B-SH | 15 | 12.6-28.8 | 6-68 | 1200-3800 | 40 | 2-4 | 152 |
| 2×1.5B-SH | 15 | 32.4-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 |
| 3x2C-SH | 30 | 39.6-86.4 | 12-64 | 1300-2700 | 55 | 4-6 | 214 |
| 4x3C-SH | 30 | 86.4-198 | 9-52 | 1000-2200 | 71 | 4-6 | 245 |
| 4x3D-SH | 60 | 97.2-198 | 9-53 | 1000-2200 | 71 | 4-6 | 245 |
| 6x4D-SH | 60 | 162-360 | 12-56 | 800-11550 | 65 | 5-8 | 365 |
| 6x4E-SH | 120 | ||||||
| 8x6E-SH | 120 | 360-828 | 10-61 | 500-1140 | 72 | 2-9 | 510 |
| 8x6R-SH | 300 | ||||||
| 10x8ST-SH | 560 | 612-1368 | 11-61 | 400-850 | 73 | 4-10 | 686 |
| 12x10ST-SH | 560 | 936-1980 | 7-68 | 300-800 | 80 | 2.5-7.5 | 762 |
| 14x12ST-SH | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 965 |
| 16x14ST-SH | 560 | 1368-3060 | 11-63 | 250-550 | 79 | 4-10 | 1067 |
| 16x14TU-SH | 1200 | ||||||
| 18x16ST-SH | 560 | 2160-5040 | 8-66 | 200-500 | 80 | 4.5-9 | 1240 |
| 18x16TU-SH | 1200 | ||||||
| 20x18TU-SH | 1200 | 2520-5400 | 13-57 | 200-400 | 85 | 5-10 | 1370 |
Note: Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).1.NPSH:appropriate to point Q recommended at highest speed.
SH Series Slurry Pumps Application:
SH Series Slurry Pump is the pump for highly abrasive,density slurries,they are most widely used in mining, minerals processing, coal preparation, dredging, metallurgy, electric power plant, chemical and other general industry applications.

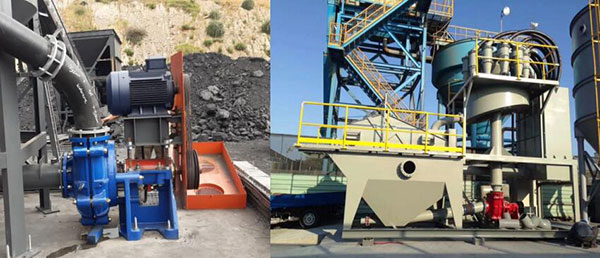

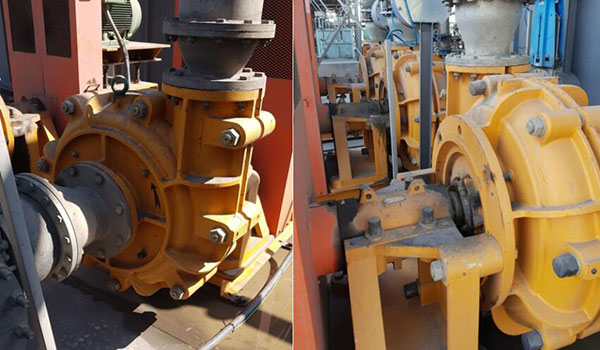

Our Pumps in Clients’ Working Site:
Our Package & Shipment:
Our package is export standard wood case(The inner layer has plastic film for better protection), we also can design special packing for over size part to solve loading problems!
