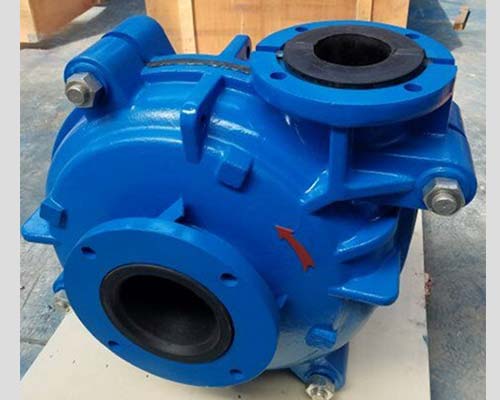

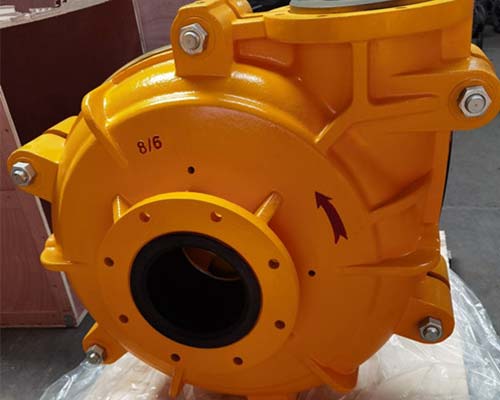

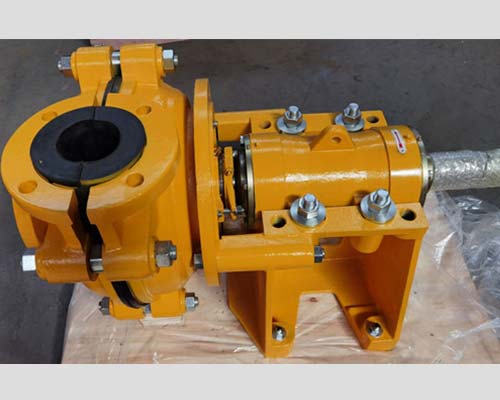

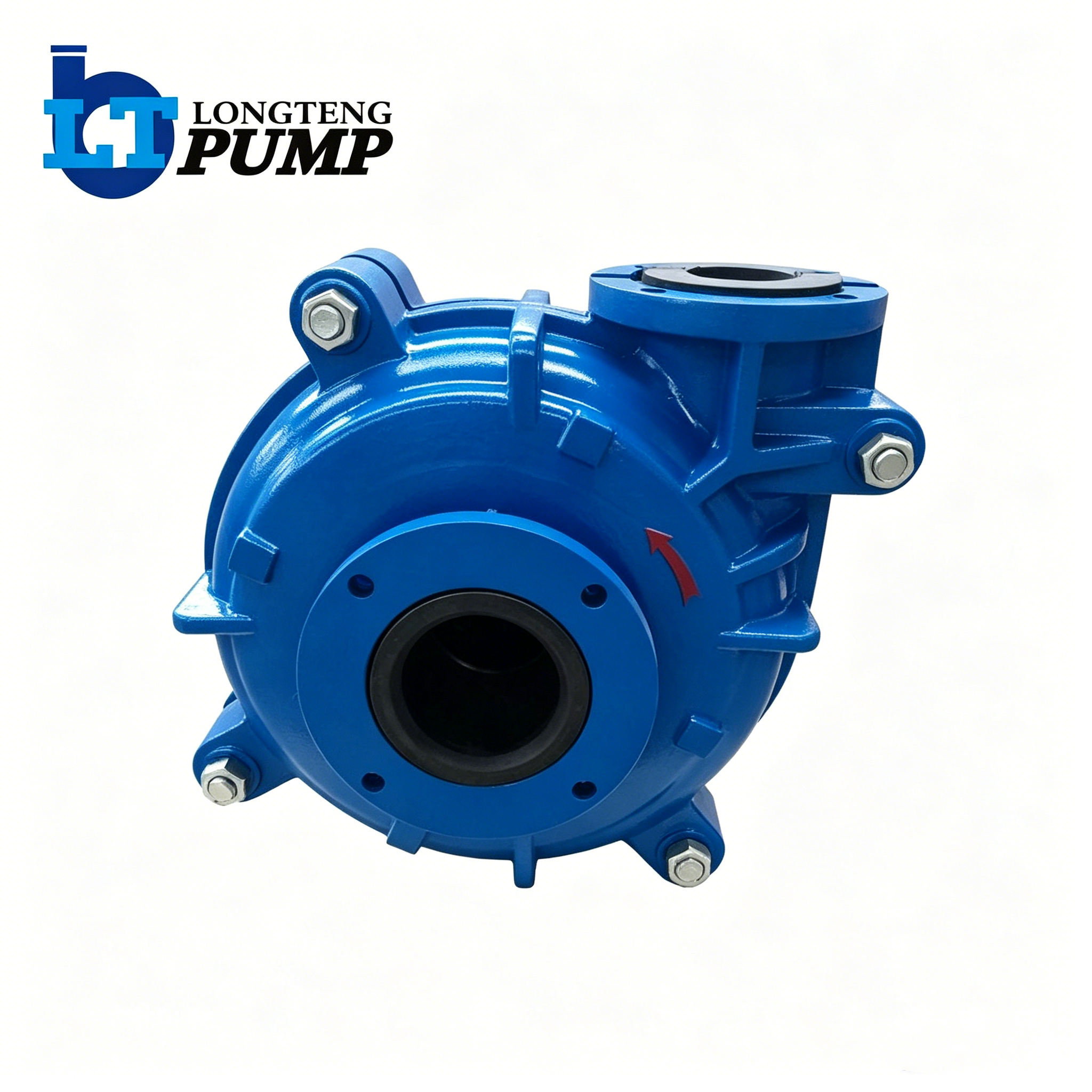

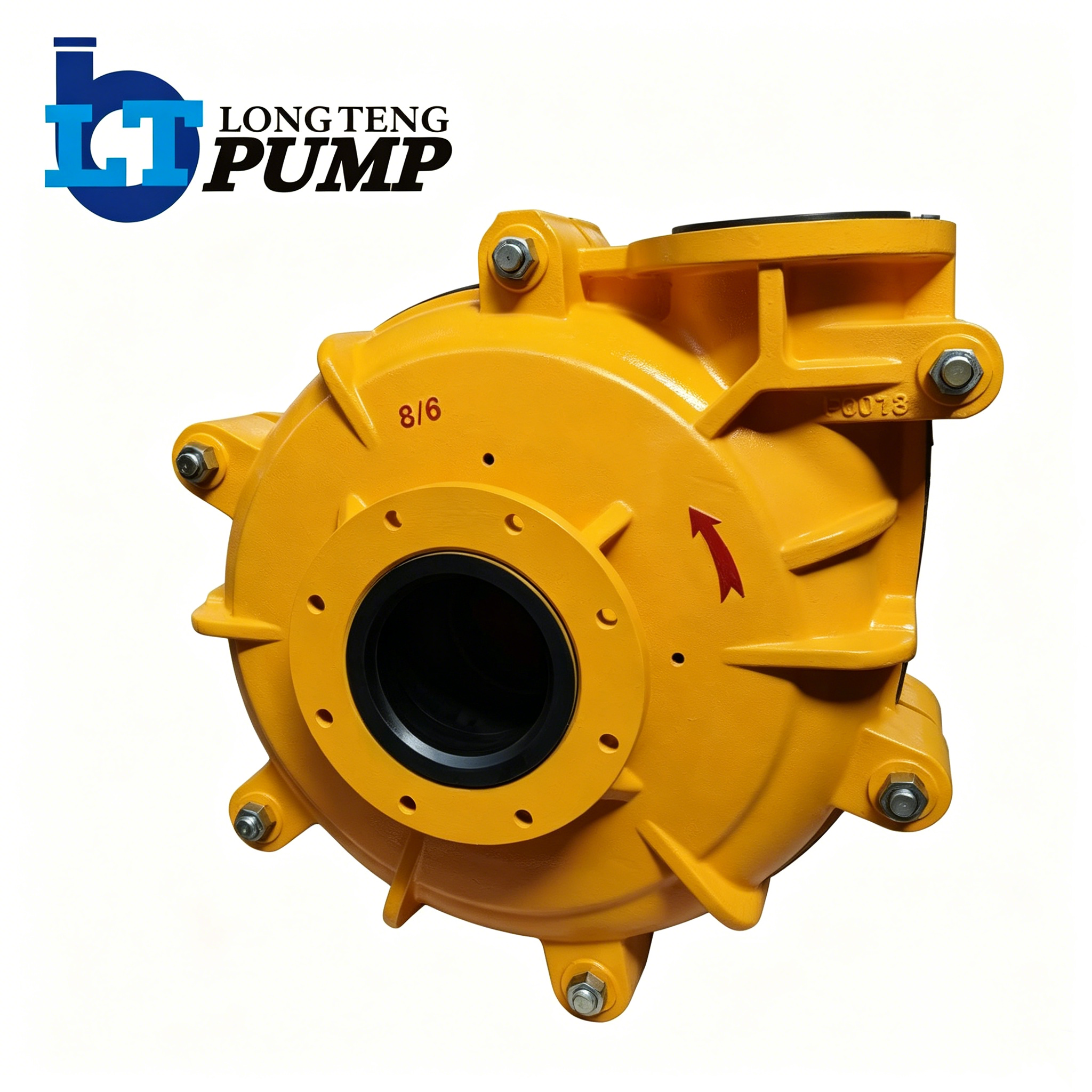

SHR horizontal slurry pump is a rubber lined centrifugal slurry pump designed for handling highly abrasive and corrosive slurry with fine to medium particles.
It is widely used in mining, mineral processing, coal preparation, and industrial slurry transportation systems.
Product Overview
The SHR series rubber lined slurry pump is designed for continuous handling of abrasive slurry containing small to medium particles without sharp edges.
Compared with metal lined pumps, rubber lined pumps provide better corrosion resistance and longer service life in fine slurry applications.

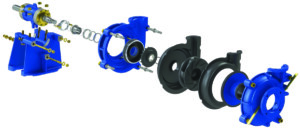

Rubber Lined Structure
The inner lining of SHR slurry pump can be customized according to different working conditions:
- Natural rubber lining
- High chrome alloy (A05 equivalent)
- Polyurethane (PU) lining
This flexible material selection allows the pump to adapt to different slurry environments.
Key Advantages
- High resistance to abrasion and corrosion

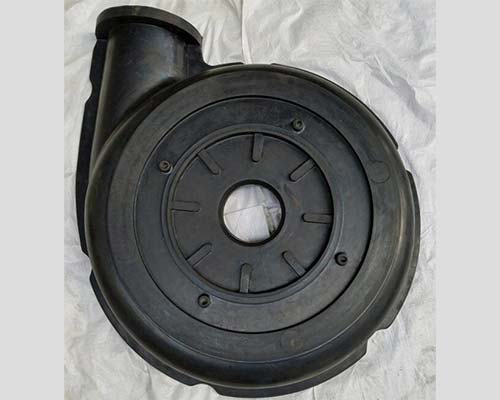

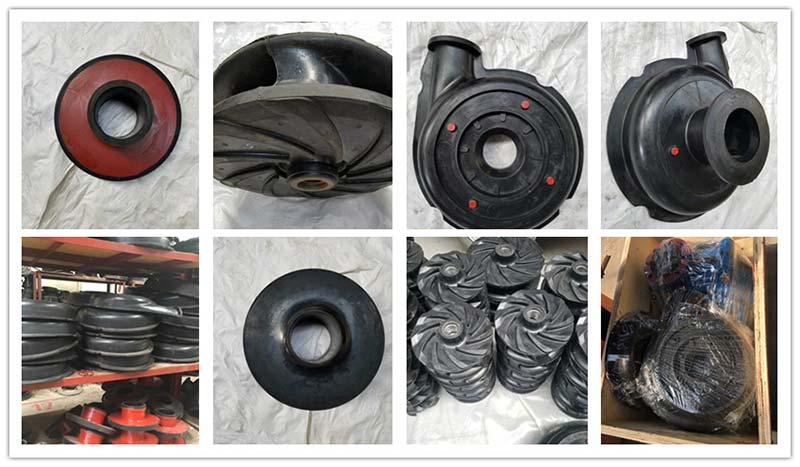

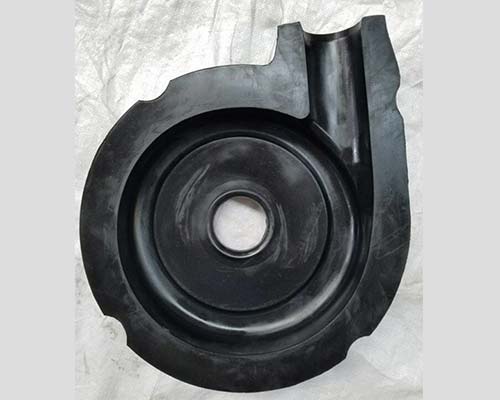

- Replaceable rubber liners for easy maintenance
- Reduced maintenance cost and downtime

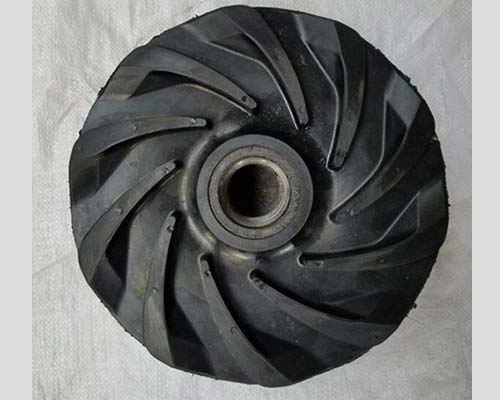

- Adjustable impeller clearance for stable performance
- Multiple sealing options available (mechanical / packing / expeller)
- Suitable for continuous heavy-duty operation
Applications
SHR horizontal slurry pumps are widely used in:
- Mining and mineral processing
- Coal preparation plants
- Cyclone feed systems
- Tailings transportation
- Chemical slurry handling
- Sand and gravel processing
- Power plant ash handling
- Paper and pulp industry
Rubber lined slurry pump performance chart
| Pump Model | Allowable Max. Power(kw) | Clear Water Performance | ||||||
| capacity Q | Head H(m) | speed n(r/min) | Max.eff. η% | NPSH (m) | Impeller Dia(mm) | |||
| m3/h | l/s | |||||||
| 1.5x1B | 15 | 10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | 2-4 | 213 |
| 2×1.5B | 15 | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5.5 | 178 |
| 3x2C | 30 | 36-75.4 | 10-21 | 13-39 | 1300-2100 | 55 | 2-4 | 213 |
| 4x3C | 30 | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | 245 |
| 4x3D | 60 | |||||||
| 6x4D | 60 | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | 365 |
| 6x4E | 120 | |||||||
| 8x6E | 120 | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | 510 |
| 8x6R | 300 | |||||||
| 10x8ST | 560 | 540-1188 | 150-330 | 12-50 | 400-750 | 75 | 4-12 | 686 |
| 12x10ST | 560 | 720-1620 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | 762 |
| 14x12ST | 560 | 1152-2520 | 320-700 | 13-14 | 300-500 | 79 | 3-8 | 965 |
| 16x14TU | 1200 | 1224-2754 | 340-765 | 9-43 | 250-450 | 82 | 3-8 | 1067 |
Selection Guide
- High abrasion slurry → Rubber lining
- Corrosive slurry → Rubber or PU lining
- High temperature slurry → High chrome lining
- Heavy-duty mining → Reinforced SHR models
Technical Support
We provide engineering support including:
- Pump model selection guidance
- Material recommendation
- Performance optimization
- OEM customization based on drawings
FAQ
Q1: What is SHR horizontal slurry pump used for?
It is used for handling abrasive and corrosive slurry in mining and industrial applications.
Q2: What materials are available for lining?
Rubber, polyurethane, and high chrome alloy are available.
Q3: Can the liners be replaced?
Yes, SHR pumps are designed with replaceable rubber liners for easy maintenance.
Q4: What industries use SHR pumps?
Mining, coal preparation, power plants, chemical and industrial slurry systems.
