1. Product Overview
The SHH (High Head Heavy Duty) horizontal slurry pumps is designed for high-pressure and high-density abrasive slurry handling.
It is widely used in mining, coal washing, metallurgy, dredging, and power plant applications.When handling abrasive slurry in mining operations, the SHH pump is widely applied in mineral processing systems.
It is especially suitable for long-distance slurry transport and high head conditions.
In addition, the pump is built with heavy-duty structure to ensure stable operation under continuous working conditions.
2. Applications
The SHH slurry pump is suitable for:
- Ore processing and mineral beneficiation
- Mine dewatering systems
- Tailings transportation systems
- Coal washing plants
- Dredging and sand pumping
- Metallurgy and power plant slurry handling
In addition, it is suitable for other industrial slurry transfer systems involving high head conditions.
3. Features & Advantages
The SHH series slurry pump offers the following advantages:
- Designed for high head and high pressure conditions
- Uses heavy-duty metal wet parts for long service life
- Handles high concentration slurry efficiently
- Reduces wear in abrasive working environments
- Suitable for continuous industrial operation
In addition, the pump structure is optimized for stable hydraulic performance.

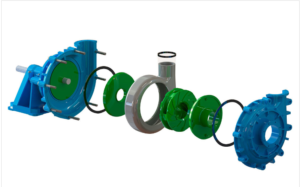

4. Product Structure
The SHH slurry pump consists of:
- Bearing assembly
- Impeller
- Casing
- Shaft sealing system
- Heavy-duty support frame
The pump is designed with a strong metal structure to ensure durability under high pressure conditions.
5. Technical Specifications
Size range: 1” to 6”
Capacity: 16.2–1008 m³/h
Head: 12–118 m
Solids handling: up to 70 mm
Max casing pressure: 750 psig
Material: High chrome alloy (metal only design)
6. Performance Parameters
| Model | Max. Power(kw) | Clear Water Performance | Impeller | |||||
| Capacity Q(m3/h) | Head H(m) | Speed n(rpm) | Eff. η(%) | NPSH(m) | Vane No. | Impeller Dia. | ||
| 1.5/1C-SHH | 30 | 16.2-34.2 | 25-92 | 1400-2200 | 20 | 2-5.5 | 5 | 330 |
| 3/2D-SHH | 60 | 68.4-136.8 | 25-87 | 850-1400 | 47 | 3-7.5 | 5 | 457 |
| 4/3E-SHH | 120 | 126-252 | 12-97 | 600-1400 | 50 | 2-5 | 5 | 508 |
| 6/4F-SHH | 560 | 324-720 | 30-118 | 600-1000 | 64 | 3-8 | 5 | 711 |
| 8/6S-SHH | 560 | 468-1008 | 20-94 | 500-1000 | 65 | 4-12 | 5 | 711 |
SHH series high head slurry pumps
Application:
7. Selection Guide
When selecting a SHH slurry pump, consider the following factors:
- Slurry concentration and particle size
- Required flow rate
- Required head
- Transport distance
- Working environment
In addition, proper selection helps improve efficiency and extend service life.
For pump selection and technical support, contact our engineering team.
8. FAQ
Q1: What is SHH slurry pump used for?
It is used for high head and high-pressure slurry transportation in mining and industrial applications.
Q2: What industries use SHH pumps?
It is widely used in mining, metallurgy, coal washing, dredging, and power plants.
Q3: What makes SHH different from standard slurry pumps?
SHH pumps are designed for higher pressure and longer-distance slurry transport.
9. Why Choose Longteng Pump
- Durable metal construction for abrasive slurry
- High efficiency hydraulic design
- Easy maintenance and spare parts availability
- Proven performance in global mining projects
