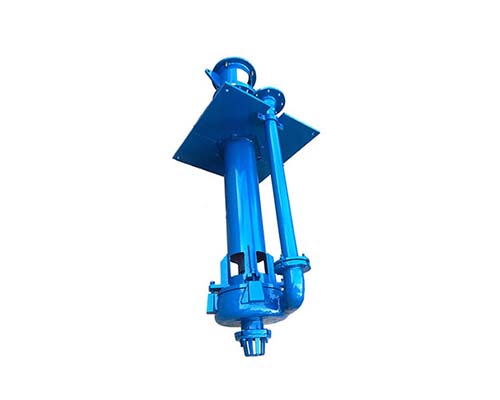

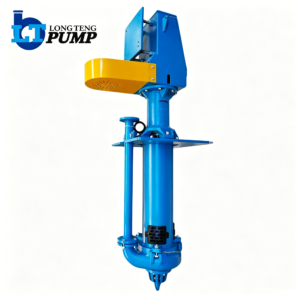

ZJL slurry pump is a vertical submerged centrifugal pump designed for handling abrasive and corrosive slurry in pits, tanks and deep liquid conditions.
It operates directly in the medium without shaft seal or sealing water, making it suitable for submerged working environments.
1. Flow Passage Design
The flow passage components are designed according to hydraulic flow conditions, which reduces hydraulic loss and minimizes wear caused by turbulence and impact.
High-hard alloy cast iron materials are used to improve wear resistance, corrosion resistance and service life.
For more pump models, please visit our slurry pump products.
2. Structural Features
ZJL pump adopts a vertical submerged structure:
- No shaft seal required
- No sealing water needed
- Suitable for pit or pool installation
- Extended shaft design available for deep liquid levels
3. Applications
ZJL slurry pump is widely used in:
- Mining slurry handling
- Metallurgy processing systems
- Power plant ash and slurry pits
- Coal washing plants
- Chemical and building material industries
4. Advantages
- No shaft seal, low leakage risk
- Stable submerged operation
- High wear resistance
- Suitable for deep liquid level conditions
- Reduced maintenance cost
5. Selection Guide
When selecting ZJL slurry pump, consider:
- Liquid depth
- Slurry concentration
- Particle size and abrasiveness
- Installation conditions (pit or tank)
Proper selection ensures stable and long-term operation.
6. FAQ
Q1: What is ZJL slurry pump used for?
It is used for submerged slurry handling in pits, tanks and industrial systems.
Q2: Does it need shaft sealing system?
No, it operates without shaft seal or sealing water.
Q3: What industries use ZJL pumps?
Mining, metallurgy, coal, chemical and power industries.
It is suitable for conveying abrasive and corrosive slurry with solid particles.
| Type | Allowable max power | Capacity | Head | Speed | Efficiency | NPSH | Allowable Particle |
| KW | m3/h | m | r/min | η | m | mm | |
| 300ZJ-I-A110 | 560 | 746-1700 | 33.1-78.0 | 400-590 | 71 | 5 | 49 |
| 300ZJ-I-A100 | 450 | 619-1826 | 37.2-67.1 | 400-590 | 81 | 4.1 | 49 |
| 300ZJ-I-A95 | 400 | 589-1735 | 24.6-60.6 | 400-590 | 81 | 4.1 | 49 |
| 300ZJ-I-A90 | 560 | 632-1844 | 33.4-78.0 | 500-730 | 82 | 4.8 | 45 |
| 300ZJ-I-A85 | 450 | 596-1742 | 29.9-69.9 | 500-730 | 82 | 4.8 | 45 |
| 300ZJ-I-A70 | 630 | 647-2333 | 16.7-76.8 | 500-980 | 80.4 | 6 | 51 |
| 300ZJ-I-A65 | 500 | 601-2166 | 14.4-66.2 | 500-980 | 80.4 | 6 | 51 |
| 300ZJ-I-A56 | 250 | 403-1568 | 10.0-48.0 | 500-980 | 81.3 | 5.5 | 54 |
| 250ZJ-I-A96 | 560 | 504-1470 | 39.9-91.0 | 500-730 | 79 | 5.3 | 38 |
| 250ZJ-I-A90 | 450 | 473-1378 | 35.5-80.0 | 500-730 | 79 | 5.3 | 38 |
| 250ZJ-I-A85 | 800 | 384-1504 | 31.4-129.8 | 500-980 | 77 | 5.1 | 42 |
| 250ZJ-I-A83 | 710 | 375-1468 | 30.0-123.8 | 500-980 | 77 | 5.1 | 42 |
| 250ZJ-I-A80 | 630 | 361-1415 | 27.8-115.0 | 500-980 | 77 | 5 | 42 |
| 250ZJ-I-A78 | 630 | 352-1380 | 353-1380 | 500-980 | 77 | 5 | 42 |
| 250ZJ-I-A75 | 500 | 301-1480 | 301-1480 | 500-980 | 77 | 4.9 | 40 |
| 250ZJ-I-A73 | 500 | 293-1441 | 293-1441 | 500-980 | 81.6 | 4.9 | 40 |
| 250ZJ-I-A70 | 450 | 288-1380 | 288-1380 | 500-980 | 81.6 | 4.8 | 40 |
| 250ZJ-I-A68 | 355 | 280-1341 | 280-1341 | 500-980 | 81.6 | 4.8 | 40 |
| 250ZJ-I-A65 | 315 | 305-1249 | 305-1249 | 500-980 | 79.5 | 4.7 | 40 |
| 250ZJ-I-A63 | 315 | 295-1211 | 295-1211 | 500-980 | 79.5 | 4.7 | 40 |
| 250ZJ-I-A60 | 250 | 281-1152 | 281-1152 | 500-980 | 79.5 | 4.7 | 40 |
| 200ZJ-I-A75 | 355 | 230-900 | 230-900 | 500-980 | 74.5 | 4.5 | 31 |
| 200ZJ-I-A73 | 355 | 223-876 | 223-876 | 500-980 | 74.5 | 4.5 | 31 |
| 200ZJ-I-A70 | 315 | 240-950 | 240-950 | 500-980 | 77.5 | 4.4 | 31 |
| 200ZJ-I-A68 | 280 | 233-923 | 233-923 | 500-980 | 77.5 | 4.4 | 31 |
| 200ZJ-I-A65 | 250 | 240-950 | 240-950 | 500-980 | 79.3 | 4.3 | 35 |
| 200ZJ-I-A63 | 250 | 233-921 | 233-921 | 500-980 | 79.3 | 4.3 | 35 |
| 200ZJ-I-A60 | 200 | 223-870 | 223-870 | 500-980 | 81.4 | 4.1 | 35 |
| 200ZJ-I-A58 | 185 | 215-841 | 215-841 | 500-980 | 81.4 | 4.1 | 35 |
| 150ZJ-I-A65 | 200 | 154-600 | 18.9-78.5 | 500-980 | 75 | 3.9 | 27 |
| 150ZJ-I-A63 | 185 | 149-582 | 17.7-73.7 | 500-980 | 75 | 3.9 | 27 |
| 150ZJ-I-A60 | 160 | 137-550 | 15.4-64.5 | 500-980 | 77.5 | 3.8 | 27 |
| 150ZJ-I-A58 | 132 | 132-532 | 14.4-60.3 | 500-980 | 77.5 | 3.8 | 27 |
| 150ZJ-I-A55 | 110 | 126-504 | 12.9-54.2 | 500-980 | 74.5 | 3.8 | 27 |
| 150ZJ-I-A50 | 75 | 117-460 | 9.9-45.5 | 500-980 | 78 | 3.2 | 27 |
| 150ZJ-I-A48 | 75 | 112-442 | 9.1-41.9 | 500-980 | 78 | 3.2 | 27 |
| 150ZJ-I-C42 | 132 | 142-550 | 12.1-64 | 700-1480 | 75 | 4.5 | 35 |
| 100ZJ-I-A50 | 160 | 86-360 | 20.2-101.6 | 700-1480 | 71.3 | 4.1 | 19 |
| 100ZJ-I-A46 | 132 | 79-331 | 17.1-86 | 700-1480 | 71.3 | 4.1 | 19 |
| 100ZJ-I-A42 | 90 | 68-275 | 14.6-71 | 700-1480 | 71 | 3.9 | 20 |
| 100ZJ-I-A39 | 75 | 63-255 | 12.6-61.2 | 700-1480 | 71 | 3.9 | 20 |
| 100ZJ-I-A36 | 45 | 61-245 | 9.1-48.6 | 700-1480 | 76 | 3.6 | 20 |
| 100ZJ-I-A33 | 37 | 57-225 | 7.7-40.8 | 700-1480 | 76 | 3.6 | 20 |
| 80ZJ-I-A42 | 75 | 61-260 | 13.3-70.6 | 700-1480 | 67.8 | 3.5 | 13 |
| 80ZJ-I-A39 | 75 | 56-241 | 11.4-60.9 | 700-1480 | 67.8 | 3.5 | 13 |
| 80ZJ-I-A36 | 45 | 45-190 | 10-51.5 | 700-1480 | 70.8 | 3 | 13 |
| 80ZJ-I-A33 | 37 | 41-174 | 8.4-43 | 700-1480 | 70.8 | 3 | 13 |
| 65ZJ-I-A30 | 15 | 23-80 | 7.4-35.8 | 700-1480 | 63.5 | 3 | 11 |
| 65ZJ-I-A27 | 11 | 20-72 | 7.0-33.6 | 700-1480 | 63.5 | 3 | 11 |
| 40ZJ-I-A17 | 4 | 5.0-20 | 6.0-29 | 1390-2890 | 53 | 2.5 | 10 |
| 150ZJ-A35 | 37 | 119-364 | 4.4-17.8 | 590-980 | 68.1 | ||
| 100ZJ-A32 | 45 | 130-385 | 10.7-29 | 970-1480 | 68 | ||
| 80ZJL-36 | 45 | 69-201 | 14-45.5 | 970-1480 | 58.2 | ||
| 50ZJL-20 | 4 | 12-39 | 2.6-10.2 | 940-1440 | 41 |
| Model | Speed r/min |
Clean Water Performance | Motor | ||||
| Q m3/h | H m |
率Pa kW |
η% | Model | kW/V | ||
| 150ZJL-A35 | 980 | 198 | 17.9 | 15.3 | 63.1 | Y250M-6 V1 | 37/380 |
| 322 | 13.2 | 17.5 | 68.1 | ||||
| 364 | 12.1 | 18.0 | 66.8 | ||||
| 730 | 147 | 10.0 | 6.3 | 63.1 | Y200-8 V1 | 15/380 | |
| 247 | 7.3 | 7.2 | 68.1 | ||||
| 271 | 6.7 | 7.4 | 66.8 | ||||
| 590 | 119 | 6.5 | 3.3 | 63.1 | Y160L-6 B3 | 11/380 | |
| 200 | 4.8 | 3.8 | 68.1 | ||||
| 219 | 4.4 | 3.9 | 66.8 | ||||
| 100ZJL-A34 | 1480 | 157 | 36.8 | 26.1 | 60.2 | Y255M-4 V1 | 45/380 |
| 214 | 32.6 | 29.2 | 65.1 | ||||
| 293 | 24.4 | 33.5 | 58.2 | ||||
| 970 | 103 | 15.8 | 7.4 | 60.2 | Y180L-6 V1 | 15/380 | |
| 140 | 14.0 | 8.2 | 65.1 | ||||
| 192 | 10.5 | 9.4 | 58.2 | ||||
| 80ZJL-A36 | 1480 | 105 | 45.5 | 25.0 | 52.1 | Y255M-4 V1 | 45/380 |
| 144 | 41.4 | 27.9 | 58.2 | ||||
| 201 | 32.5 | 32.8 | 54.2 | ||||
| 970 | 69 | 19.5 | 7.0 | 52.1 | Y180L-6 V1 | 15/380 | |
| 94 | 17.8 | 7.8 | 58.2 | ||||
| 132 | 14.0 | 9.3 | 54.2 | ||||
| 65ZJL-A30 | 1470 | 38 | 34.7 | 8.2 | 43.7 | Y180M-4 V1 | 18.5/380 |
| 58 | 31.9 | 9.7 | 51.9 | ||||
| 98 | 26.0 | 13.4 | 51.7 | ||||
| 960 | 25 | 14.8 | 2.3 | 43.7 | Y132M2-6 B5 | 5.5/380 | |
| 38 | 13.6 | 2.7 | 51.9 | ||||
| 64 | 11.1 | 3.7 | 51.7 | ||||
| 50ZJL-A20 | 1440 | 17 | 10.7 | 1.4 | 34.9 | Y112M-4 B5 | 4/380 |
| 25 | 9.2 | 1.6 | 38.6 | ||||
| 38 | 5.9 | 2.0 | 31.2 | ||||
| 910 | 11 | 4.3 | 0.4 | 34.9 | Y90L-6 B5 | 1.1/380 | |
| 16 | 3.7 | 0.4 | 38.6 | ||||
| 24 | 2.4 | 0.5 | 31.2 | ||||
| 40ZJL-A25 | 1440 | 10.1 | 21.5 | 2.3 | 26.1 | Y132S-4 V1 | 5.5/380 |
| 18.4 | 19.0 | 2.6 | 36.6 | ||||
| 22.9 | 16.8 | 2.8 | 37.6 | ||||
| 910 | 6.4 | 8.6 | 0.6 | 27.9 | Y90L-6 V1 | 1.1/380 | |
| 11.6 | 7.6 | 0.7 | 42.4 | ||||
| 14.5 | 6.7 | 0.7 | 44.6 | ||||
| 40ZJL-A21 | 1440 | 9.5 | 17.0 | 1.6 | 27.9 | Y112M-4 V1 | 4.0/380 |
| 20.3 | 15.3 | 2.0 | 42.4 | ||||
| 25.9 | 14.1 | 2.2 | 44.6 | ||||
| 910 | 6.0 | 6.8 | 0.4 | 27.9 | Y90L-6 V1 | 1.0/380 | |
| 12.8 | 6.1 | 0.5 | 42.4 | ||||
| 16.4 | 5.6 | 0.6 | 44.6 | ||||
