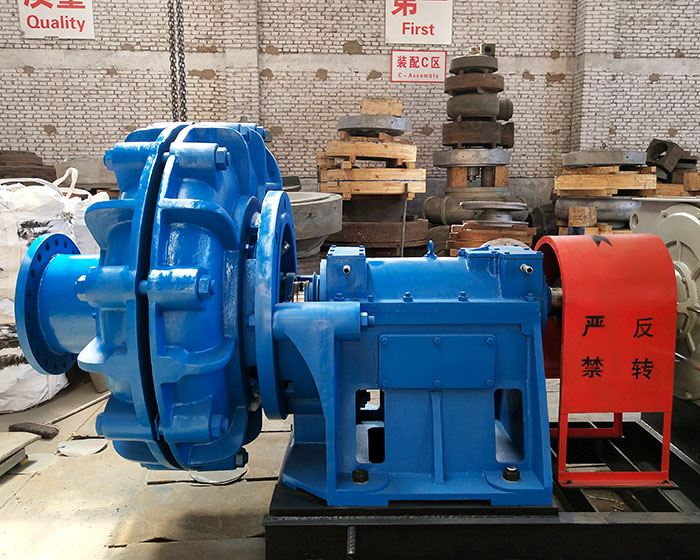

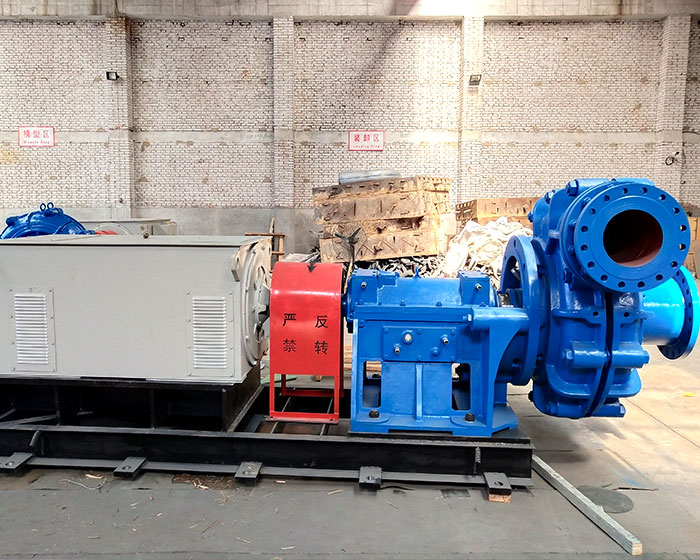

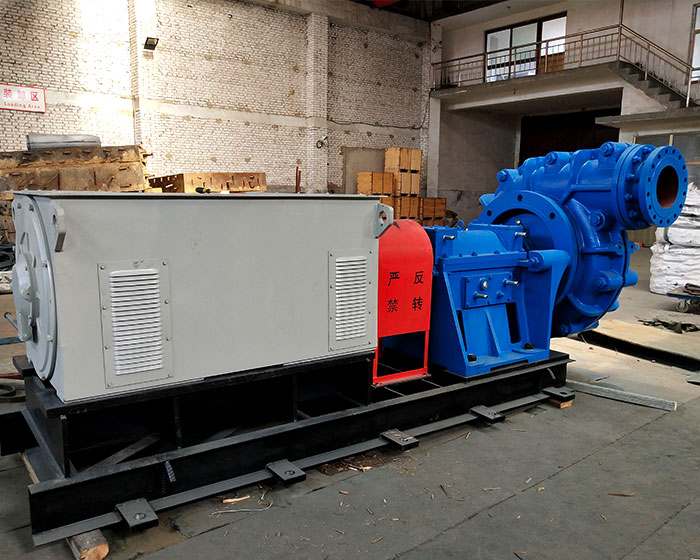

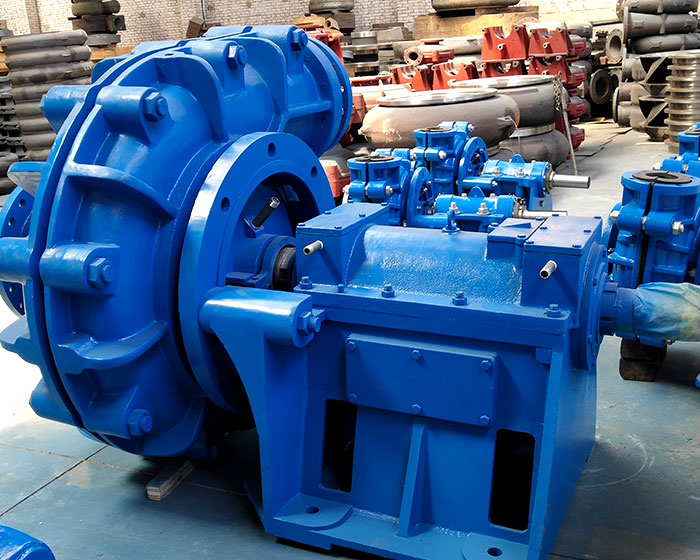

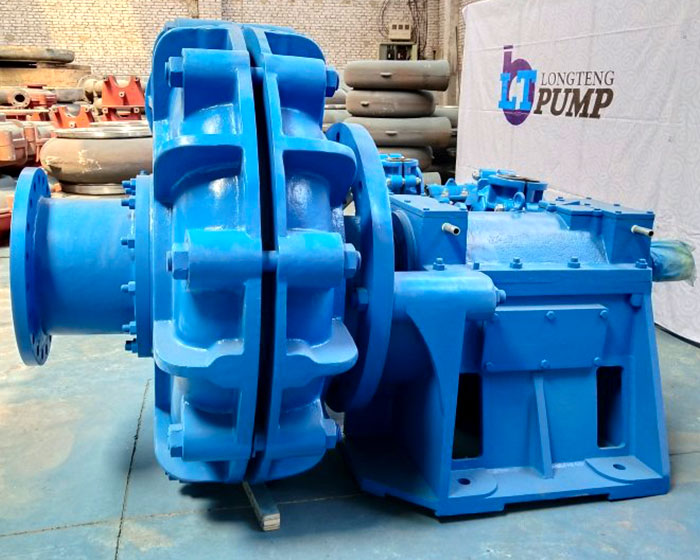

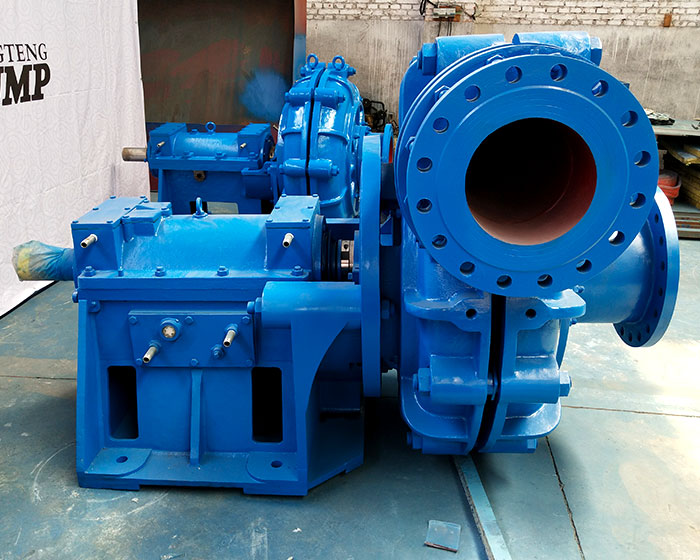

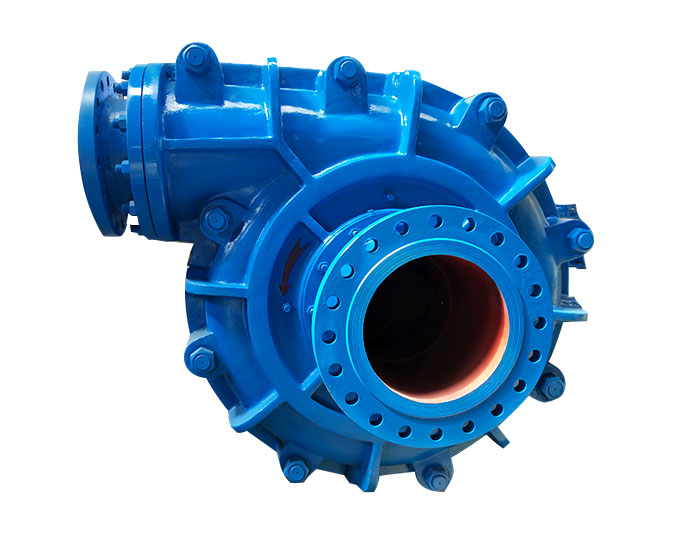

ZGB High Efficiency Slurry Pump For Abrasive And Corrosion Solid
Application and Features
In order to meet requirements on the development of the electric power, metallurgy and coal industries, series ZGB(P) has been designed with large capacity, high head, multi-stages in series to remove ash and sluge and to deliver liquid-solids mixture.
CAD modern design , super hydraulic performance, high efficiency and lower abrasion.
Wide passage,non-clogging and good performance of NPSH.
Expeller seal combined wiht packing seal and mechanical seal can stop slurry leakage.
Wet end parts have good performance of anti wearing and anti-corrosion.
This series pump has the advantage of reasonable construction, high efficiency, reliable operation and easy maintenance.
It can be widely used for handing the contained of abrasive and corrosion solids in electric power, metallurgy, mine coal, constructional materials and chemical industry department, especially for removing ash and sludge in electric power station.

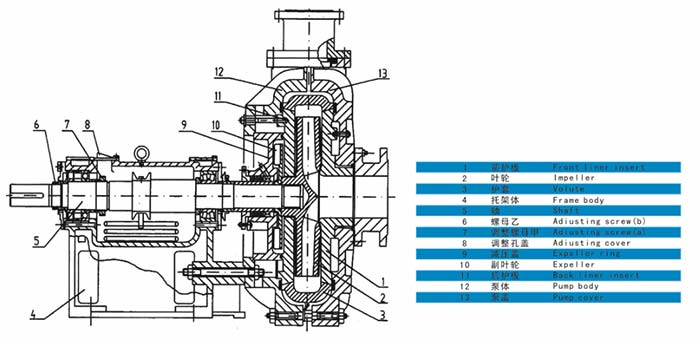

ZGB Pump Construction

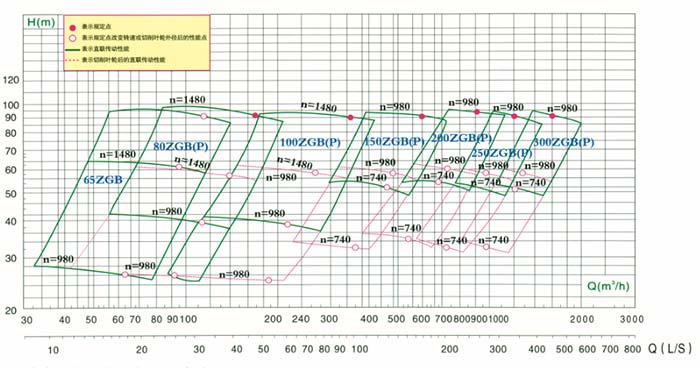

ZGB Pump Performance Curve
ZGB Slurry Pump Main technical Data
| Model | inlet（mm） | Speed（r/m） | Clear water performance |
Pa （KW） |
Impeller Dia（mm） | |||
| Q
(L/S) |
H
（m） |
η
（%） |
NPSH（m） | |||||
| 65ZGB | 65 | 1480 | 15.8-31.7 | 58.0-61.0 | 48.0-54.0 | 3.0-5.5 | 19.7-33.4 | 390 |
| 980 | 10.5-21.0 | 25.4-26.7 | 48.0-54.0 | 3.0-5.5 | 5.73-9.69 | |||
| 80ZGB | 80 | 1480 | 28.3-56.7 | 87.5-91.6 | 45.3-64.2 | 2.7-5.2 | 56.0-75.7 | 490 |
| 980 | 18.8-37.5 | 38.1-40.2 | 45.3-64.2 | 2.7-5.2 | 16.3-22.0 | |||
| 1480 | 25.7-51.5 | 72.2-75.5 | 45.3-64.2 | 2.7-5.2 | 42.0-56.7 | 445 | ||
| 980 | 17.1-34.1 | 31.7-33.1 | 45.3-64.2 | 2.7-5.2 | 12.2-16.5 | |||
| 1480 | 23.1-46.2 | 58.3-61.0 | 45.3-64.2 | 2.7-5.2 | 30.5-41.1 | 400 | ||
| 980 | 15.3-30.6 | 25.6-26.7 | 45.3-64.2 | 2.7-5.2 | 8.8-12.0 | |||
| 100ZGB | 100 | 1480 | 58.3-116.7 | 85.1-91.8 | 57.4-77.9 | 2.6-6.0 | 91.4-124.9 | 500 |
| 980 | 38.8-77.3 | 37.3-40.3 | 57.4-77.9 | 2.6-6.0 | 26.6-36.3 | |||
| 1480 | 52.5-105.0 | 68.9-74.4 | 57.4-77.9 | 2.6-6.0 | 66.7-91.0 | 450 | ||
| 980 | 34.8-69.5 | 30.2-32.6 | 57.4-77.9 | 2.6-6.0 | 19.4-26.4 | |||
| 1480 | 46.7-93.4 | 54.5-58.8 | 57.4-77.9 | 2.6-6.0 | 46.9-64.0 | 400 | ||
| 980 | 30.9-61.8 | 23.9-25.8 | 57.4-77.9 | 2.6-6.0 | 13.6-18.6 | |||
| 150ZGB | 150 | 980 | 100.0-200.0 | 85.2-90.0 | 50.5-73.7 | 2.7-3.8 | 174.4-226.6 | 740 |
| 740 | 75.6-151.2 | 48.6-51.3 | 50.5-73.7 | 2.7-3.8 | 75.3-97.7 | |||
| 980 | 91.2-182.4 | 73.0-77.1 | 50.5-73.7 | 2.7-3.8 | 135.6-177.1 | 685 | ||
| 740 | 70.2-140.0 | 41.6-44.0 | 50.5-73.7 | 2.7-3.8 | 59.9-77.7 | |||
| 980 | 84.6-169.2 | 61.8-65.2 | 50.5-73.7 | 2.7-3.8 | 107.0-139.0 | 630 | ||
| 740 | 64.8-129.6 | 35.2-37.2 | 50.5-73.7 | 2.7-3.8 | 46.7-60.7 | |||
| 200ZGB（p） | 200 | 980 | 150.0-300.0 | 89.0-94.2 | 63.2-76.3 | 2.7-6.7 | 219.1-342.9 | 740 |
| 740 | 113.3-226.5 | 50.7-53.7 | 63.2-76.3 | 2.7-6.7 | 94.3-147.5 | |||
| 980 | 141.9-283.8 | 79.6-84.3 | 63.2-76.3 | 2.7-6.7 | 185.8-290.2 | 700 | ||
| 740 | 107.1-214.3 | 45.4-48.1 | 63.2-76.3 | 2.7-6.7 | 80.0-125.0 | |||
| 980 | 129.7-259.5 | 66.6-70.5 | 63.2-76.3 | 2.7-6.7 | 141.8-222.0 | 640 | ||
| 740 | 97.9-195.9 | 38.0-40.2 | 63.2-76.3 | 2.7-6.7 | 61.0-95.0 | |||
| 250ZGB（p） | 250 | 980 | 200.0-400.0 | 84.0-90.1 | 62.1-76.2 | 3.3-7.3 | 284.4-432.1 | 740 |
| 740 | 151.0-302.0 | 47.9-51.4 | 62.1-76.2 | 3.3-7.3 | 122.5-186.0 | |||
| 980 | 189.2-378.4 | 75.2-80.6 | 62.1-76.2 | 3.3-7.3 | 240.7-388.0 | 700 | ||
| 740 | 142.9-285.2 | 42.9-46.0 | 62.1-76.2 | 3.3-7.3 | 103.6-157.6 | |||
| 980 | 131.6-348.6 | 63.8-68.5 | 62.1-76.2 | 3.3-7.3 | 142.2-286.0 | 645 | ||
| 740 | 99.4-263.2 | 36.4-39.1 | 62.1-76.2 | 3.3-7.3 | 61.3-123.2 | |||
| 300ZGB | 300 | 980 | 266.7-533.3 | 84.3-93.4 | 65.3-77.7 | 3.5-6.9 | 373.8-567.0 | 760 |
| 740 | 201.3-402.7 | 48.1-53.3 | 65.3-77.7 | 3.5-6.9 | 163.7-244.3 | |||
| 980 | 246.7-493.3 | 72.1-79.9 | 65.3-77.7 | 3.5-6.9 | 295.8-448.6 | 703 | ||
| 740 | 177.9-372.5 | 41.1-45.6 | 65.3-77.7 | 3.5-6.9 | 121.7-193.1 | |||
| 980 | 266.7-453.3 | 60.9-67.5 | 65.3-77.7 | 3.5-6.9 | 299.7-348.4 | 646 | ||
| 740 | 171.2-342.3 | 34.7-38.5 | 65.3-77.7 | 3.5-6.9 | 98.8-149.8 | |||
