The FROTH PUMP AF series is a new generation of products, developed by our factory based on the advanced technology of domestic and foreign, and do this promoted.
Now, it is widely used in metallurgical, mining, coal, chemical and other industrial sectors. Be define by application the handling of abrasive or corrosive frothy slurries, mainly in flotation.
It can still work normally under the case of material shortages, it features a wide choice for various flotation processes. It is an ideal product for conveying foam pulp.

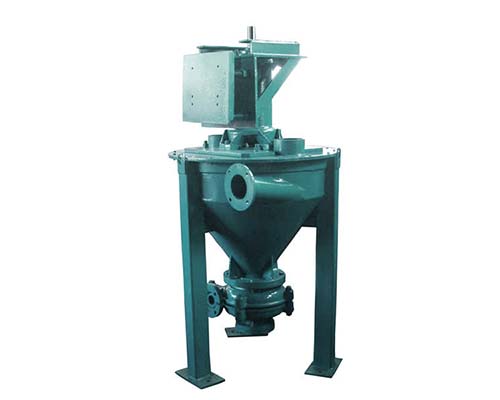

AF Series Vertical Froth Floatation Pumping For Mining, Paper,Pulp And Waste water
Froth pump is widely used in metallurgical, mining, coal, chemical and other industrial sectors. Be define by application the handling of abrasive or corrosive frothy slurries, mainly in flotation.
Products Features
Hard metal vertical froth pumps SF series have been designed to increase the pumpability of frothy slurry. The principle of operation is similar to that of hydrocyclone separation.
Standard pumps are supplied with parts in wear resistant high chrome iron alloy, with a nominal hardness of 58-65HRC.
The SF froth pump is ideal for all applications involving handling of air entrained slurries, such as flotation froth in base metal concentrators, phosphate and apatite washing plants and calcium carbonate upgrading plants. The pump can also be used as a mixing and distribution unit, where dry powder has to be mixed with water.
Structure Description
AF series pumps structure is simple, the most commonly used, easy to install and use. The structural characteristics are as follows:
1. This type of pump used in SP, SPR, PNL bearing assembly, and the bearing body is equipped with motor base or electric frame, that is, direct drive or indirect drive can be adopted, easy replacement of pulley, used to change the speed of pump, to meet the change of working conditions.
2. The hopper is made of steel structure or stainless steel, steel liner rubber etc., with tangential feed port and overflow box, the overflow box can conveniently put the excess materials sent back to the feed pool again, the tangential inlet port could enable the material to enter the pump quickly and eliminate some foam.
3. The pump head structure is a split casing, depending on the medium of transport, the wetted spares could choose from: metal, rubber, or other non-metallic materials.
The structure diagram is shown below:
Froth Pump Main Technical Data
Pump Model |
Allowable Max. Power (kw) |
Material | Clear Water Performance | Diameter | ||||
Capacity Q | Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
Suction (mm) |
Discharge (mm) |
|||
Impeller | m3/h | |||||||
SF/50QV | 15 | Metal (A05) |
7.6-42.8 | 6-29.5 | 800-1800 | 45 | 100 | 50 |
SF/75QV | 18.5 | 23-77.4 | 5-28 | 700-1500 | 55 | 150 | 75 | |
SF/100RV | 37 | 33-187.2 | 5-28 | 500-1050 | 55 | 150 | 100 | |
SF/150SV | 75 | 80-393 | 5-25 | 250-680 | 55 | 200 | 150 | |
SF/200SV | 110 | 126-575 | 5.5-25.5 | 350-650 | 55 | 250 | 200 |

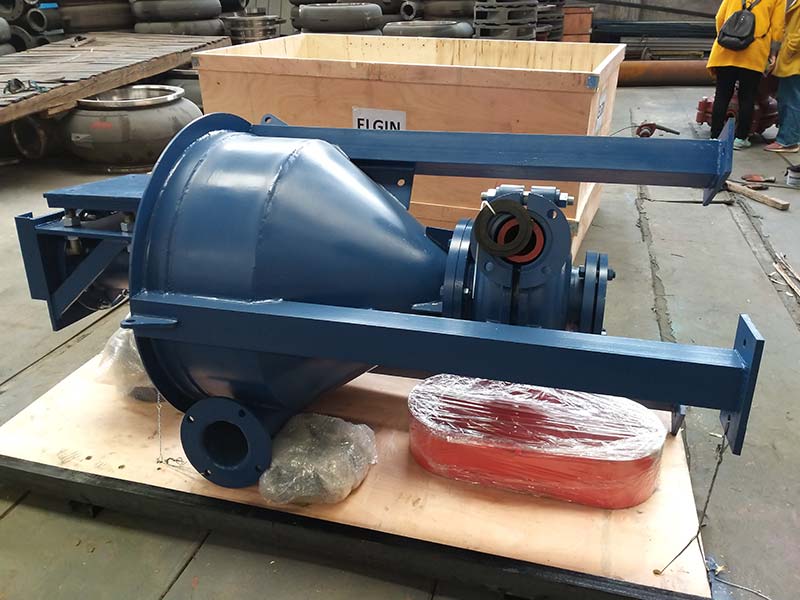

Products Details
